Your Irrigation Specialist since 1952

Top of the line Irrigation Guns and Sprinklers

We offer our customers top of the line irrigation guns and sprinklers. Reliable and efficient brands to make the most of your irrigation system.

irrigation Guns

Komet Big Volume Guns

Big volume guns for lasting performance.

Komet Guns:
NOZZLE RANGE
12 nozzles
 10.0 – 24.0 mm
 0.39″ – 0.94″
FLOW RANGE
5.4 – 56.4 m³/h
22 – 268 GPM
THROW RANGE
 21.8 – 53.4 m
 135 – 366 ft
NOZZLE RANGE
17 nozzles
 12.0 – 28.0 mm
 0.47″ – 1.10″
FLOW RANGE
7.8 – 79.2 m³/h
35 – 363 GPM
THROW RANGE
 24.2 – 60.6 m
 161 – 404 ft
NOZZLE RANGE
19 nozzles
 16.0 – 34.0 mm
 0.63″ – 1.34″
FLOW RANGE
13.8 – 116.8 m³/h
62 – 535 GPM
THROW RANGE
 29.0 – 68.7 m
 192 – 459 ft
NOZZLE RANGE
23 nozzles
 18.0 – 40.0 mm
 0.71″ – 1.57″
FLOW RANGE
21.7 – 184.6 m³/h
92 – 811 GPM
THROW RANGE
 37.8 – 82.4 m
 227 – 540 ft
NOZZLE RANGE
24 nozzles
 22.0 – 45.0 mm
 0.87″ – 1.77″
FLOW RANGE
32.4 – 235.0 m³/h
137 – 1032 GPM
THROW RANGE
 41.5 – 90.0 m
 247 – 590 ft

Nelson Big Guns

With roots in irrigation for over 100 years, Nelson has been obsessive in their mission to serve customers with state-of-the-art water application solutions.

Nelson Guns

Excellent option when flow or pressure are limited.

Flow: 25-160 gpm (6-36 m3/hr)

Pressure: 25-80 psi (1.75-5.5 bar)

Radius: 75-140 ft (23-43 m)

Trajectory: 18°, 21°, 24°, 43°

For more info, click here.

The industry standard and most versatile high volume sprinkler.

Flow: 40-300 gpm (9-68 m3/hr)

Pressure: 40-110 psi (2.75-7.5 bar)

Radius: 90-190 ft (27-58 m)

Trajectory: 18°, 21°, 24°, 43°, 15-45°

For more info, click here.

Reliability for hose reel traveller and industrial applications.

Flow: 90-630 gpm (20-143 m3/hr)

Pressure: 50-120 psi (3.5-8.25 bar)

Radius: 120-240 ft (36-73 m)

Trajectory: 21°, 24°, 27°, 43°, 15-45°

For more info, click here.

Maximum flow, pressure and throw distance.

Flow: 230-1200 gpm (52-272 m3/hr)

Pressure: 50-130 psi (3.5-9 bar)

Radius: 160-310 ft (48-95 m)

Trajectory: 21°, 24°, 27°

For more info, click here.

PERFORMANCE

100-550 GPM (23-150 m3/h)

50-120 PSI (4-9 kg/cm2)

Full Circle F150 – 21°, 24°

Part Circle SR150 – 21°, 24°, 27°, 43°

Part Circle SRA150 – 15°-45° adjustable

*Ring Set On Nelson Guns Can Be Substituted For Two (2) Taper Bore Nozzles.

irrigation Sprinkler

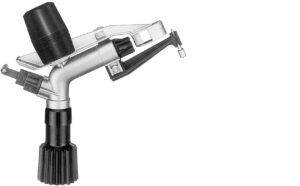

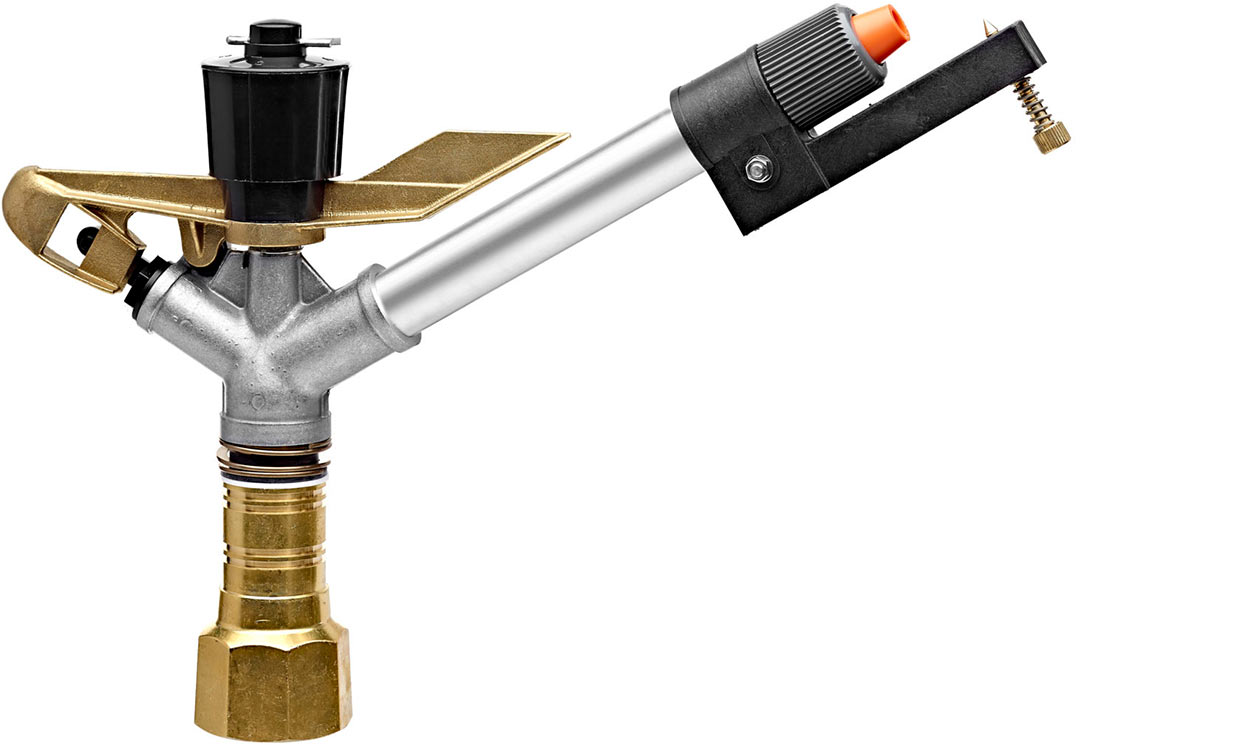

Komet Sprinklers

Komet Sprinklers:
NOZZLE RANGE
5 nozzles
 8.0 – 16.0 mm
 0.31″ – 0.63″
FLOW RANGE
4.91 – 25.82 m³/h
22 – 114 gpm
THROW RANGE
 19.5 – 34.5 m
 64 – 113 ft
NOZZLE RANGE
5 nozzles
 8.0 – 16.0 mm
 0.31″ – 0.63″
FLOW RANGE
4.91 – 25.82 m³/h
22 – 114 gpm
THROW RANGE
 19.5 – 34.5 m
 64 – 113 ft
NOZZLE RANGE
5 nozzles
 6.0 – 12.0 mm
 0.24″ – 0.47″
FLOW RANGE
1.62 – 11.25 m³/h
7 – 50 gpm
THROW RANGE
 14.0 – 26.0 m
 46 – 85 ft
NOZZLE RANGE
5 nozzles
 6.0 – 12.0 mm
 0.24″ – 0.47″
FLOW RANGE
2.09 – 11.25 m³/h
9 – 50 gpm
THROW RANGE
 16.5 – 26.0 m
 54 – 85 ft
NOZZLE RANGE
7 nozzles
 4.5 – 8.0 mm
 0.18″ – 0.31″
FLOW RANGE
1.05 – 5.00 m³/h
5 – 22 gpm
THROW RANGE
 13.8 – 21.2 m
 45 – 70 ft
NOZZLE RANGE
7 nozzles
 A 4.5-8.0 mm
 A 0.18″ – 0.31″
 B 3.2 mm
 B 0.13″
FLOW RANGE
1.62 – 5.80 m³/h
7 – 26 gpm
THROW RANGE
 13.8 – 21.2 m
 45 – 70 ft

Rainbird Sprinklers

Cadman carries the following Berkely products: SAE Mount Pumps, Electric Pumps, Close-Coupled Drive Series, Frame Mount Centrifugal Series, High Flow / High Efficiency Centrifugal Irrigation Pumps, Heavy Duty "Z" Frame and Vertical Multi-Stage (BVM) Series.

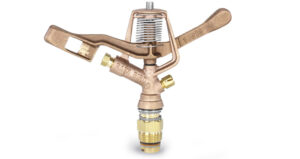

Full Circle Brass Impact Sprinklers

1/2” 13mm Full Circle, Brass, Wedge Drive Impact Sprinkler

Specifications
• Bearing: 1/2″ (13mm) Male NPT, Brass
• Trajectory Angle: 23°
• Operating Range: 20-60 psi (1.4-4.1 bar)
• Flow Rate: .0.56-2.68 gpm (0.14-0.61 m3/h)
• Radius: 29-38 ft. (9.0-11.70 meters)
• Nozzle Port: 1/8” Female NPT

1/2” 13mm Full Circle, Brass Impact Sprinkler

Specifications
• Bearing: 1/2″ (13mm) Male NPT, Brass
• Trajectory Angle: 23°
• Operating Range: 35-60 psi (2.4-4.1 bar)
• Flow Rate: 2.05-5.47 gpm (0.47-1.24 m3
/h)
• Radius: 38-44 ft. (11.6-13.4 meters)
• Nozzle Port: 1/8” Female NPT

3/4” 19 mm Full Circle, Plastic, Low Angle Impact Sprinkler

Specifications
• Bearing: 3/4″ (19mm) Male NPT, Brass
• Trajectory Angle: 10°
• Operating Range: 20-60 psi (1.4-4.1 bar)
• Flow Rate: 1.6-17.8 gpm (0.36-4.04 m3
/h)
• Radius: 43-61 ft. (13.1-18.7m)
• Nozzle Port: Plastic Quick-Fit

3/4″ (19mm) Full Circle, Brass Impact Sprinkler

Specifications

  • Bearing: 3/4″ Male NPT, Brass
  • Trajectory Angle: 27 degrees
  • Operating Range: 25-80 psi (1.7-5.5 bar)
  • Flow Rate: 4.2-23 gpm (0.97-5.34 m3/h)
  • Radius: 44-71 ft.(13.57-22.10 m)
  • Nozzle Port: 1/4″ Female NPT
  • Spreader Nozzle Port: 1/8″ Female NPT

1″ (25 mm) Full Circle, Brass Impact Sprinkler

Specifications

  • Bearing: 1″ Female NPT, Brass (70CH)
  • Trajectory Angle: 21 degrees
  • Operating Range: 40-80 psi (2.8-5.5 bar)
  • Flow Rate: 8.8-45.8 gpm (2.0-10.4 m3/h)
  • Radius: 57-82 ft. (17.39-25.01 meters)
  • Nozzle Port: 3/8” Female NPT
  • Spreader Nozzle Port: 3/8″ Female NPT (Requires Spreader Bushing to accept LAN-20 Nozzles)
Medium Throw & Short Throw Sprinklers

1/2” 13mm Full or Part Circle, Plastic
Impact Sprinkler

Specifications

• Bearing: 1/2″ (13mm) Male NPT, Plastic
• Trajectory Angle: Standard 23°
Low Angle 10° available.
• Operating Range: 25-60 psi (1.7-4.1 bar)
• Flow Rate: 1.5-8.4 gpm (0.34-1.91 m3
/h)
• Radius: 22-45 ft. (6.7-13.7 meters)
• Nozzle: QuickFit Nozzle Port

1/2” 13mm Full or Part Circle, Brass Impact
Sprinklers

Specifications

• Bearing: 1/2″ (13mm) Male NPT, Brass
• Trajectory Angle: 25°
• Operating Range: 30-50 psi (2.1-3.5 bar)
• Flow Rate: 3.1-5.0 gpm (0.7-1.14 m3
/h)
• Radius: 38-41 ft. (11.6-12.5 meters)
• Nozzle Port: 1/8” Female NPT

Reliability for hose reel traveller and industrial applications.

Flow: 90-630 gpm (20-143 m3/hr)

Pressure: 50-120 psi (3.5-8.25 bar)

Radius: 120-240 ft (36-73 m)

Trajectory: 21°, 24°, 27°, 43°, 15-45°

For more info, click here.

1” 25 mm Full or Part Circle, Brass Impact
Sprinkler

Specifications

• Bearing: 1″ (25mm) Female NPT, Brass
• Trajectory Angle: 27°
• Operating Range: 50-80 psi (3.5-5.5 bar)
• Flow Rate: 12.9-16.5 gpm (2.93-3.75 m3
/h)
• Radius: 57-65 ft. (17.4-19.8 meters)
• Nozzle Port: 3/8” Female NPT

1 1/4” 32 mm Full or Part Circle,
Brass Impact Sprinklers

Specifications

• Bearing: 1 1/4″ (32mm) Male NPT, Brass
• Trajectory Angle: 23°
• Operating Range: 25-100 psi (1.7-6.9 bar)
• Flow Rate: 17.1-127.7 gpm (3.88-29 m3
/h)
• Radius: 61-116 ft. (18.6-35.4 meters)
• Nozzle Port: 3/4” Female NPT
• Spreader Nozzle Port: 1/8” Female NPT

Nelson Sprinklers

3000 Series Sprinklers

Our Nelson Sprinklers:
