Fluid Transfer: Pump Stations

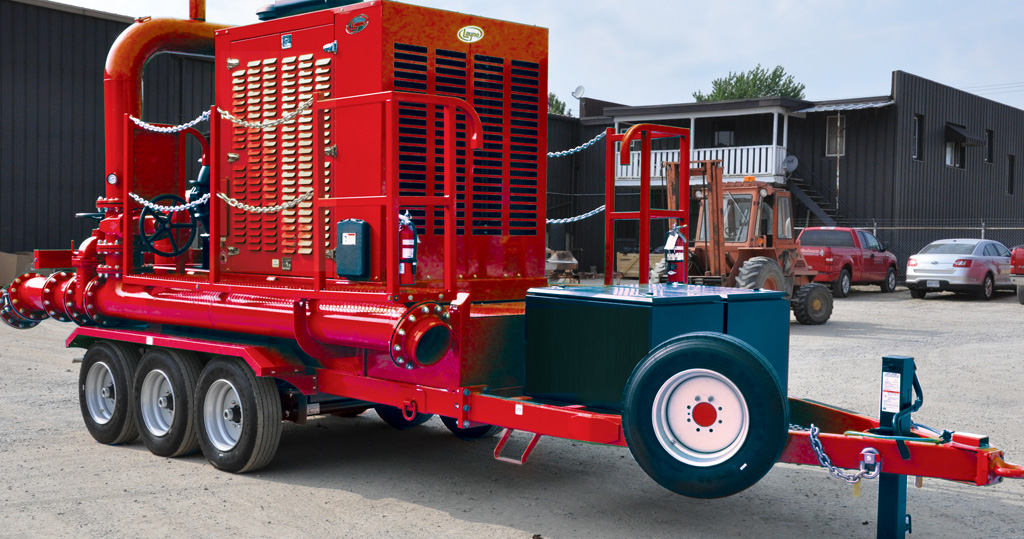

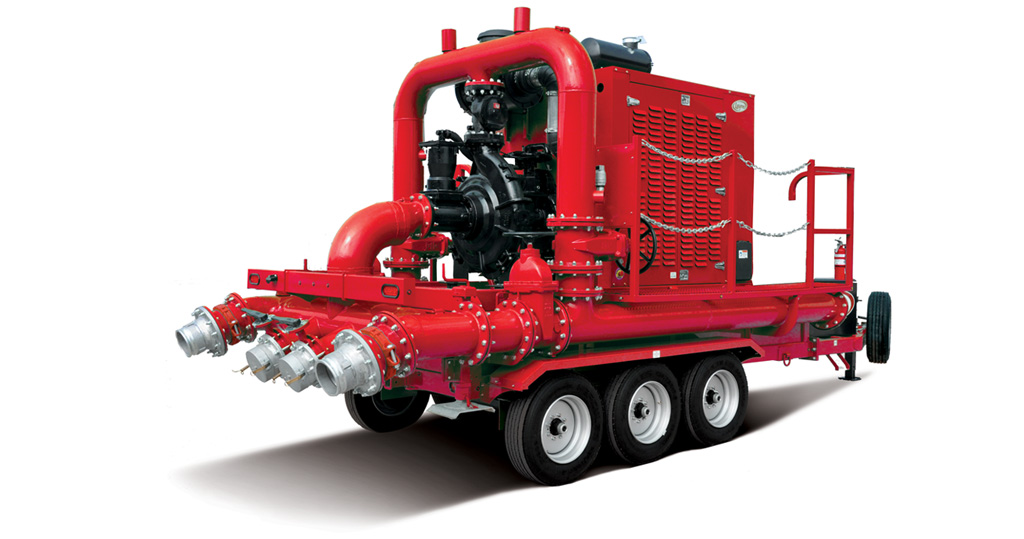

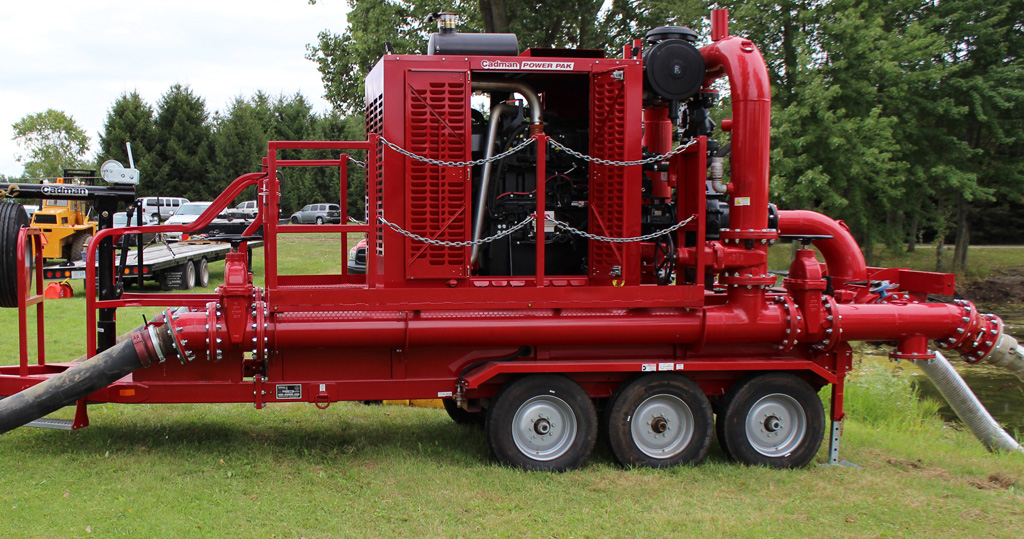

Cadman 600 hp Pump Station

If you are looking for a powerful, easy-to-use, towable pump station with a sleek design and safety in-mind, here it is. Cadman custom engineers every pumping station to meet the specific requirements of each customer. They are a rock-steady resource for high volume water transfer. The pump stations can be used as an emergency backup application for sewage or moving large volumes of water fighting fires.


Built with a low center of gravity and weight equally distributed throughout, these pump stations move fluid like a tireless juggernaut at the push of a button.



Benefits

  • Move large volumes of liquid quickly
  • Fully automatic priming and repriming Cornell pump
  • Handles air/liquid mixtures with ease
  • Environmentally safe priming system designed to prevent product leakage
  • Handles large sized solids
  • High suction lift capability up to 28 feet
  • Houses a lifting bale for easy loading/unloading of unit
  • Increase productivity and avoid high labor costs
  • Premium hydraulic efficiency for reduced energy consumption


    • Features

  • Pump from 1500 up to 4200 gallons per minute (35-100 bbl / min)
  • Suction ports are fitted with butterfly valves for easy hook-up/unhooking hose
  • Gate valves are used to control discharge and main flow feeds
  • 300 gallon DOT rated fuel tank
  • Lifting bale for easy loading/unloading of unit
  • Gate valves are used to control discharge and main flow feeds
  • Plumbing is designed for use as either a source or booster pump
  • Plumbing is designed for easy blowout with either a ball or bullet
  • Optional manual crane that can be fitted on the front or back of the Pump Station to assist in lifting 10” or 12” hose fittings

    • 3758H Pumping Station

    Details:

  • John Deere 375 HP Engine
  • Comes with a Cornell 8 H Self-Priming Pump
  • Two 8,000 lbs. axles fitted with electric brakes
  • Four 2” air release valves 4 Levelling jacks

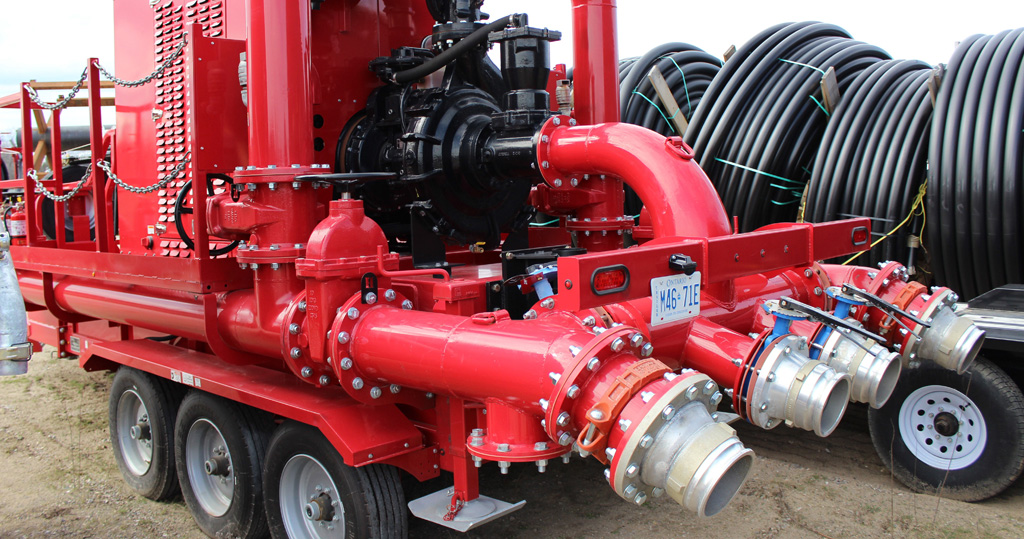

  • Five 8” suction ports to avoid cavitation


    • 600 6822MX-Pumping Station

    Details:

  • 600 HP John Deere Engine
  • 6822 MX Self-Priming Pump
  • Three 8,000 lbs. axles fitted with electric brakes
  • 300 gallon DOT rated fuel tank Four 2” air release valves
  • 2 Levelling jacks
  • Four 8” suction ports to avoid cavitation
  • Suction ports are fitted with butterfly valves
  • Gate valves are used to control discharge and main flow feeds
  • Twin discharge ports to allow for maximum w/o restriction
  • Plumbing is designed for use as either a source or booster pump
  • Plumbing is designed for easy blowout with either a ball or bullet
  • Optional manual crane that can be fitted on the front or back of the pump station to assist in lifting 10” or 12” hose fittings


    • 600 8NHTH-Pumping Station

    Details:

  • 600 HP John Deere Engine
  • Comes with a Cornell 8NHTH Self-Priming Pump
  • Three 8,000 lbs. axles fitted with electric brakes
  • 300 gallon DOT rated fuel tank
  • Four 2” air release valves
  • 2 Levelling jacks
  • Four 8” suction ports to avoid cavitation
  • Suction ports are fitted with butterfly valves
  • Gate valves are used to control discharge and main flow feeds
  • Twin discharge ports to allow for maximum flow w/o restriction
  • Plumbing is designed for use as either a source or booster pump
  • Plumbing is designed for easy blowout with either a ball or bullet
  • Optional manual crane that can be fitted on the front or back of the Pump Station to assist in lifting 10” or 12” hose fittings

    • MODEL FLOW / RANGE CURVE PHOTOS
    Cornell 6NHTB19 Redi-Prime® Up to 3,500 GPM
    Cornell Redi-Prime Manure Pump
    		Cornell MP Series Pumps
    Cornell 8H-EM Redi-Prime® Pumps Up to 5,500 GPM
    Cornell Manure Pump
    		Cornell MP Series Manure Pump
    Cornell 8H-F Redi-Prime® Up to 5,500 GPM
    Cornell Manure Pump
    		Cornell MP Series Manure Pump
    Cornell MP Series Pumps Up to 40,000 GPM
    Cornell Redi-Prime Manure Pump
    		Cornell MP Series Manure Pump

    Safety Features

  • Low pressure audio and visual warning system
  • Fire extinguishers and emergency shutoffs on each side
  • Rugged LED lights to combat rough terrain and poor visibility
  • Pressure gauges protected by steel collars
  • Four vibrant night lights for after hours work and maintenance
  • Engine control panel equipped with protection gauge


    • Efficiency Advantage

    The design of the pump allows the operator to launch a ball back through the system and return all unused water to source for future use. This is done without having to disconnect any hoses avoiding spillage of any “produced” water.

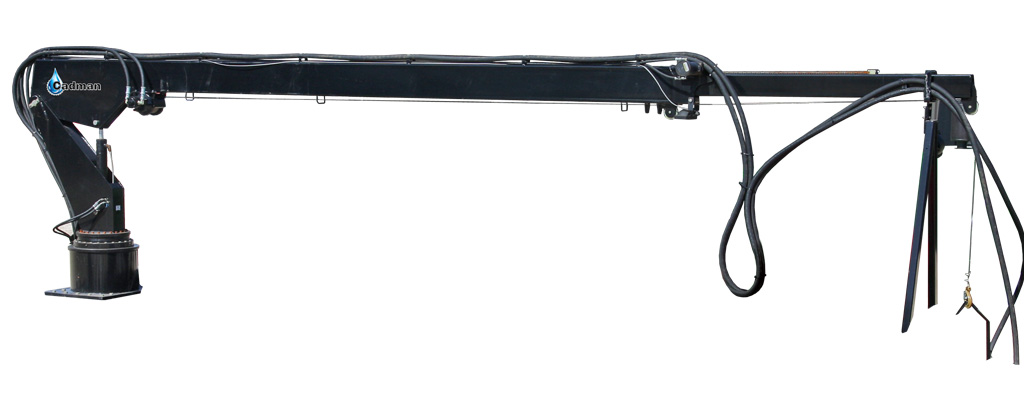

    Boom Options:

  • 20 Foot Manual Boom
  • 32 Foot Hydraulic Boom (18' Trailer)
  • 32 Foot Hydraulic Boom (24' Trailer)

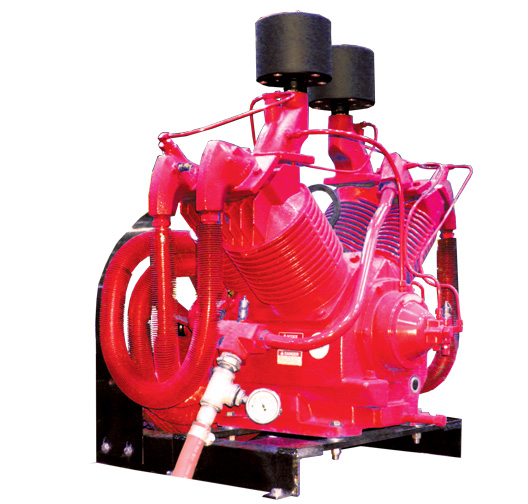

    • Compressor Options:

  • 20 Foot Manual Boom
  • 105 CFM Champion
  • Gardener Denver 300 CFM
    • MODEL PHOTO

    Magnetek Enrange™ CHTX Transmitter Remote

  • Rated IP65, sealed to withstand harsh, industrial environments
  • Durable housing is made to withstand shock
  • Connected to heavy-duty chest plate to prevent operator fatigue
  • Built on a proven technology platform with a long track record for success in the field

    		•
