Irrigation Pump-Set Packages
[ Kubota | John Deere | Honda ]

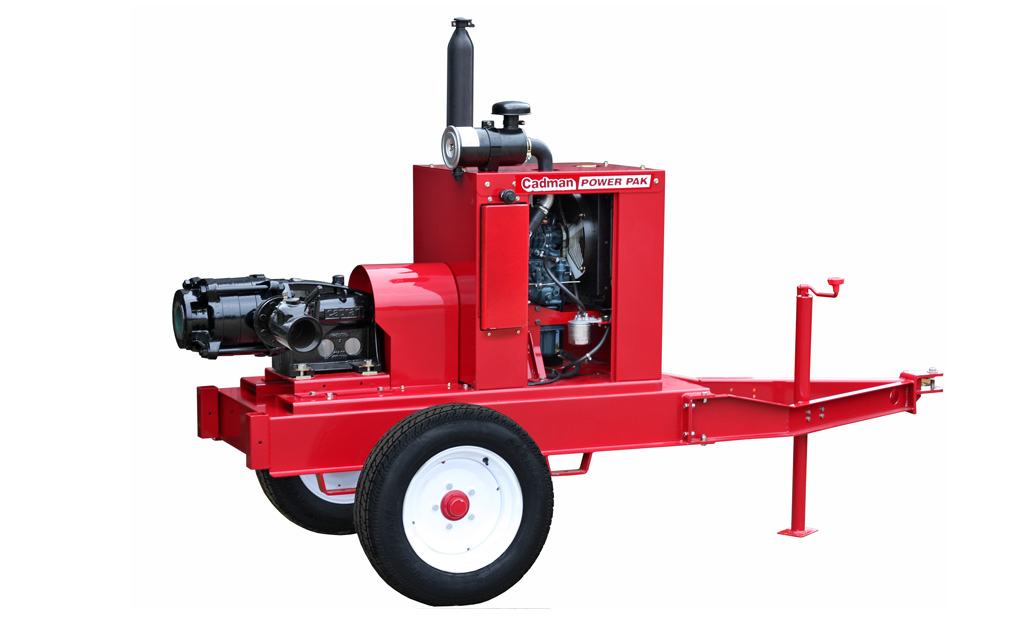

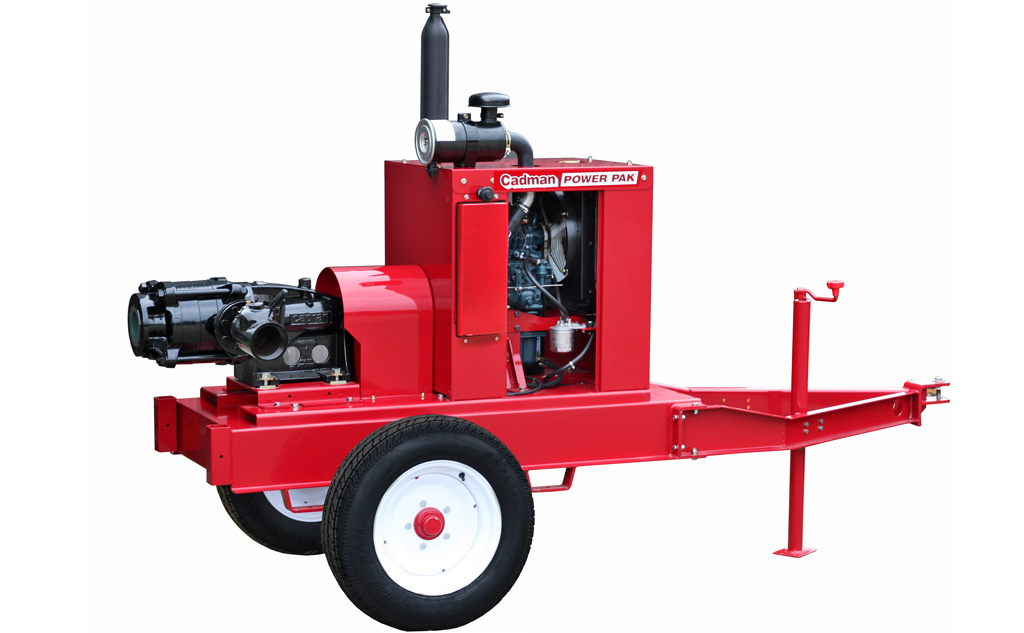

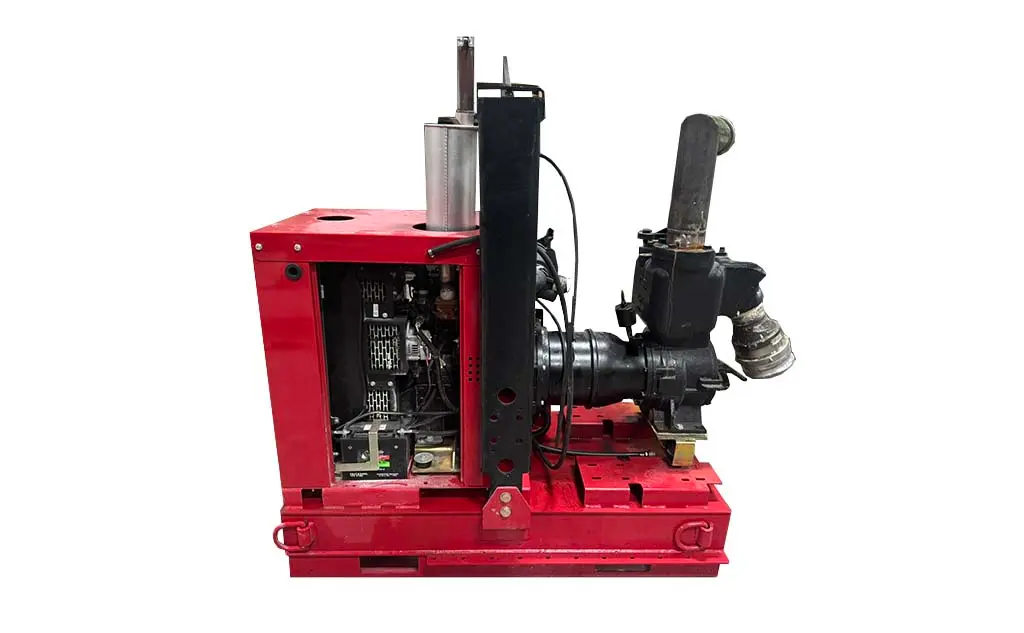

Kubota Irrigation Power Unit

Kubota Pump-Set Packages | John Deere | Honda | Top

Cadman offers a full line of Kubota engines that can be matched to the appropriate pump for your application. All pump sets are available with customizable trailers, pump and storage options which are designed to get the maximum efficiency and safety in the field.


Features

  • Skid Base
  • Radiator
  • Heavy Duty Air Cleaner
  • Muffler
  • Hood
  • 50 Gallon Fuel Tank
  • Fuel Level Gauge

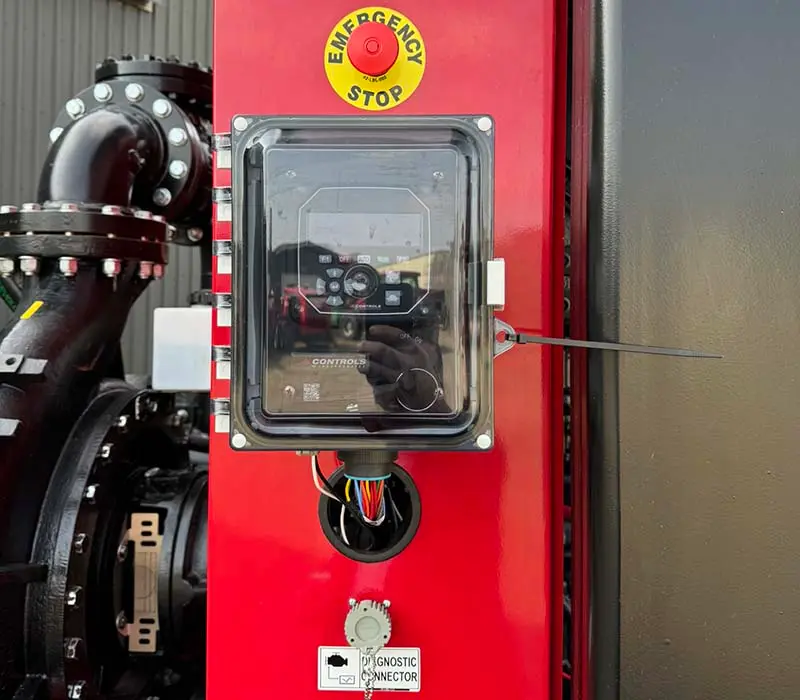

  • Instrument Panel w/ Murphy Gauges*
  • Locking Panel Cover
  • Throttle Control
  • Battery Box & Hold Downs
  • Battery Cables

  • Standard Builds

  • Enclosed power unit
  • Muffler
  • Battery
  • Oil level safety guage
  • Tongue & Axle with 50 gallon fuel tank
  • 12-Volt power primer
  • Caprari
    Part NumberGPM Range PSI Range Engine hp Fuel Consumption Seal Type
    KU-PKG - 16HMNU401348 - 176 40 - 17616 @ 3600 RPM0.34 - 1.03 GPHPacking
    KU-PKG -16A240A 40 - 300 13 - 108 16 @ 3600 RPM0.34 - 1.03 GPHPacking
    KU-PKG - 25HMU4023 48 - 160 40 - 214 25 @ 3600 RPM 0.56 - 1.51 GPHPacking
    KU-PKG - 25A350A 50 - 320 22 - 130 25 @ 3600 RPM0.56 - 1.51 GPHPacking
    KU-PKG - 29HMU5013 55 - 211 40 - 196 29 @ 3600 RPM 0.67 - 1.26 GPH Packing
    KU-PKG - 25A350A 60 - 450 17 - 95 29 @ 3600 RPM 0.67 - 1.26 GPH Packing
    KU-PKG - 25A350A 60 - 396 50 - 187 45 @ 3600 RPM 1.12 - 2.6 GPH Packing
    KU-PKG - 25A350A 150 - 800 17 - 95 45 @ 3600 RPM 1.12 - 2.6 GPH Packing
    DESCRIPTION
    Side Panels (Z602, D902, D1305)
    Side Panels (V1505T)
    Tongue & Axle Assembly
    Lifting Bail
    12 Hour Shutdown Clock
    24 Hour Shutdown Clock
    0-200 PSI High/Low Pressure Gauge
    L-129 Oil Level Safety Gauge
    EL150K1 Coolant Level Safety Gauge
    Battery

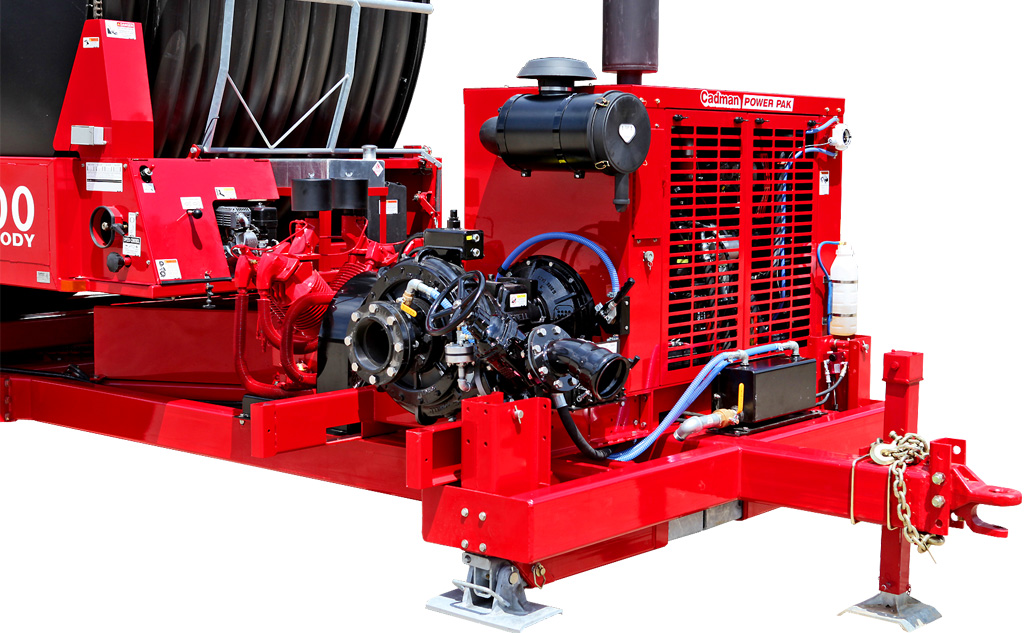

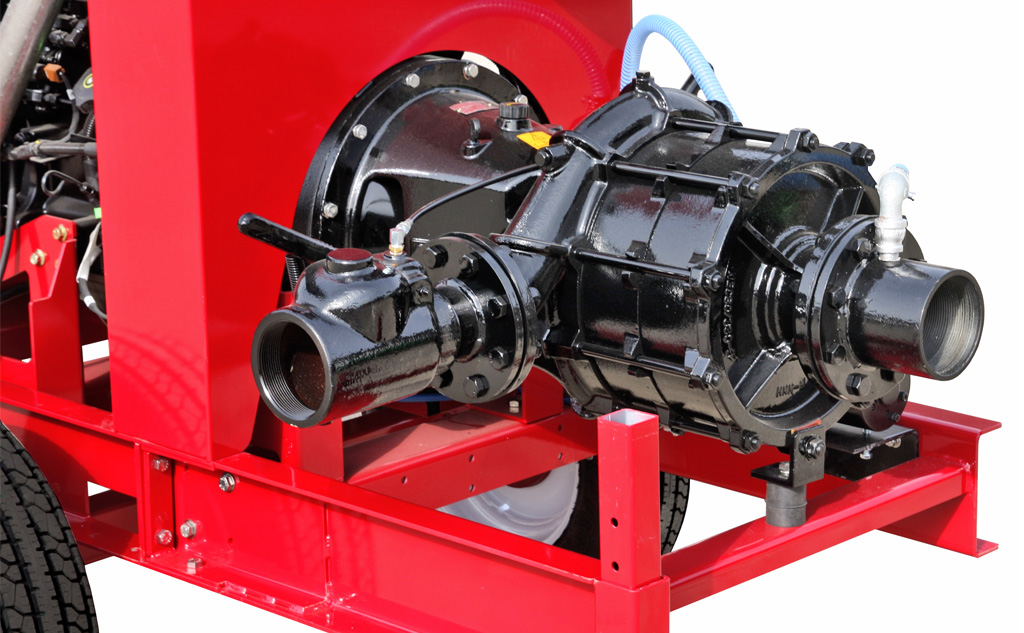

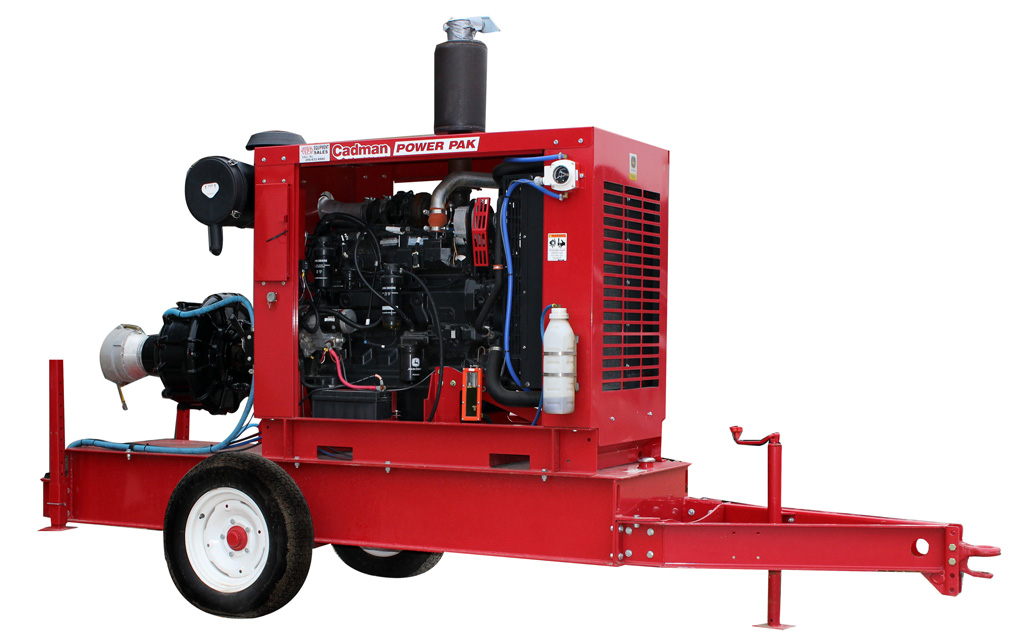

    Irrigation Power Unit John Deere Pump-Set Packages | Kubota | Honda | Top

    Cadman offers a full line of John Deere engines that can be matched to the appropriate pump for your application. All pump sets are available with customizable trailers, pump and storage options which are designed to get the maximum efficiency and safety in the field.


    Features

  • Front Grill/Rad Support
  • Back Panel/Rear Hood Support
  • Instrument Panel w/ Murphy Gauges
  • Locking Panel Cover
  • Throttle Control
  • Battery Box & Hold Downs
  • Battery Cables
  • Skid Base
  • Radiator
  • Heavy Duty Air Cleaner
  • Safety Element (Air Cleaner)
  • Service Indicator (Air Cleaner)
  • Straight Stack Exhaust
  • Hood

  • Instrument panel includes tachometer/hourmeter, oil pressure gauge, water temperature, gauge, voltmeter, Murphy tattletale, & key switch.

    Standard Builds

  • 3/4 Enclosed power unit
  • Muffler
  • Oil level safety guage
  • Coolent level safety guage
  • Tongue & Axle with appropriate sized fuel tank
  • 12-Volt power primer
  • Caprari
    Part NumberGPM Range PSI Range Engine hp Fuel Consumption Seal Type
    JD-PKG - 66MR6532A 100 - 400 40 - 195 66 @ 800 RPM 0.5 - 3.6 GPHPacking
    JD-PKG - 75BHR200A 500 - 2300 10 - 37 64 @ 1800 RPM 1.2 - 2.7 GPHPacking
    JD-PKG - 82MG802C 250 - 750 65 - 175 79 @ 2200 RPM 0.9 - 4.5 GPHPacking
    JD-PKG - 99BHR250A 1000 - 4400 10 - 30 90 @ 1800 RPM 1.7 - 3.3 GPHPacking
    JD-PKG - 99MG802A 250 - 750 70 - 184 99 @ 2200 RPM 1.1 - 4.6 GPH Packing
    JD-PKG - 125MG8043A 200 - 750 87 - 238 120 @ 2000 RPM 1.4 - 5.3 GPH Packing
    JD-PKG - 185MG10022C 400 - 1000 95 - 195 170 @ 1800 RPM 2.5 - 6.5 GPH Packing
    JD-PKG - 200MG10022C 400 - 1100 150 - 225 200 @ 2000 RPM 3 - 9 GPH Packing
    JD-PKG - 225MR1252C* 800 - 1600 90 - 175 220 @ 1800 RPM 3.2 - 8.3 GPH Packing
    JD-PKG - 325PM1503A* 900 - 2400 90 - 175 293 @ 1800 RPM 4 - 14 GPH Packing
    Cornell
    Part NumberGPM Range PSI Range Engine hp Fuel Consumption Seal Type
    JD-PKG - 1554414T 400 - 1300 50 - 170 155 @ 2300 RPM 2.1 - 7.6 GPH Run Dry
    JD-PKG - 1854HM 400 - 1200 45 - 170 185 @ 2300 RPM 2.5 - 8.8 GPH Run Dry
    Berkeley
    Part NumberGPM Range PSI Range Engine hp Fuel Consumption Seal Type
    JD-PKG - 115B3JQBM 200 - 1100 45 - 156 115 @ 2400 RPM 1.8 - 5.7 GPH Packing
    JD-PKG - 140B4JQBH 400 - 1500 45 - 162 140 @ 2400 RPM 1.8 - 6.9 GPH Packing
    JD-PKG - 200B4EYQBH 400 - 1400 200 - 2100 200 @ 2400 RPM 3 - 9 GPH Packing
    JD-PKG - 225B5EXQBHS* 800 - 1700 225 -2300 225 @ 2300 RPM 3.2 - 12.1 GPH Mechanical

    *Max RPM is determined by the maximum allowable RPM for the pump. For detailed HP information, refer to the engine power curve.

    DESCRIPTION
    Side Panels (For Fully Enclosed 4 Cylinder)
    Side Panels (For Fully Enclosed 6 Cylinder)
    Tongue & Axle Assembly
    Tongue & Axle Assembly w/ 100 Gallon Fuel Tank
    Tongue & Axle Assembly w/ 150 Gallon Fuel Tank
    Third Support Leg (avail. w/ axle kit only)
    100 Gallon Fuel Tanks w/o Tongue & Axle
    150 Gallon Fuel Tanks w/o Tongue & Axle
    Tandem Axle
    12 Hour Shutdown Clock
    24 Hour Shutdown Clock
    Generator Mount (includes belts & pulleys)
    0-200 PSI High/Low Pressure Gauge
    L-129 Oil Level Safety Gauge (4045)
    L-129 Oil Level Safety Gauge (6068)
    EL150K1 Coolant Level Safety Gauge
    Muffler (80 - 200)
    Muffler (225 - 275)
    Exhaust Silencer
    Battery (Standard Duty for 4045)
    Battery (Heavy Duty for 6068)

    NOTE: Continuous HP ratings are published ratings by John Deere. These ratings do not account for fan or alternator losses.

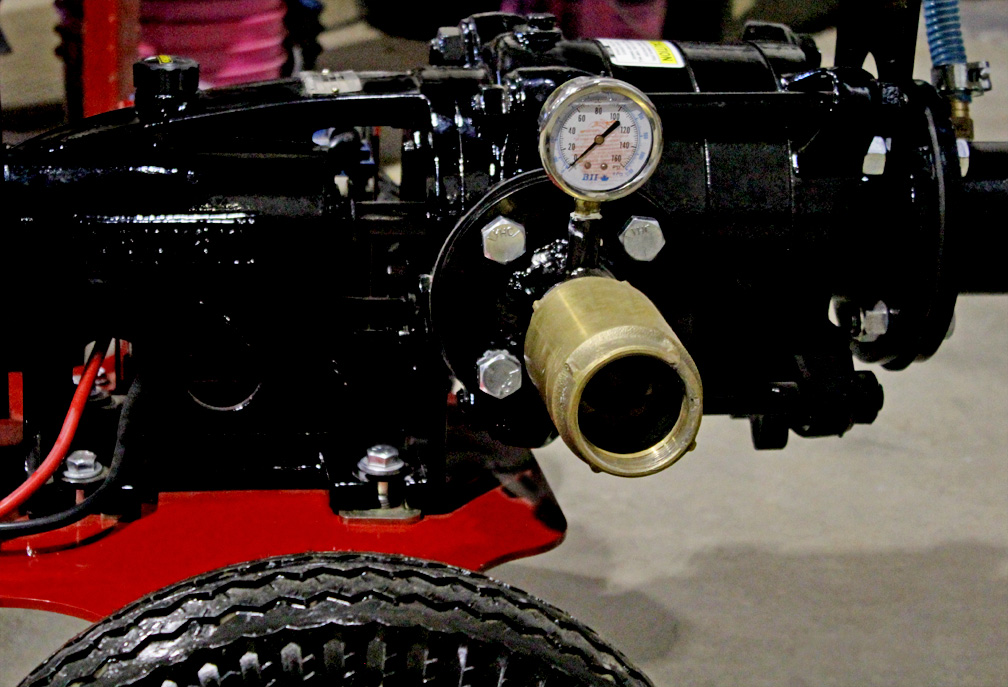

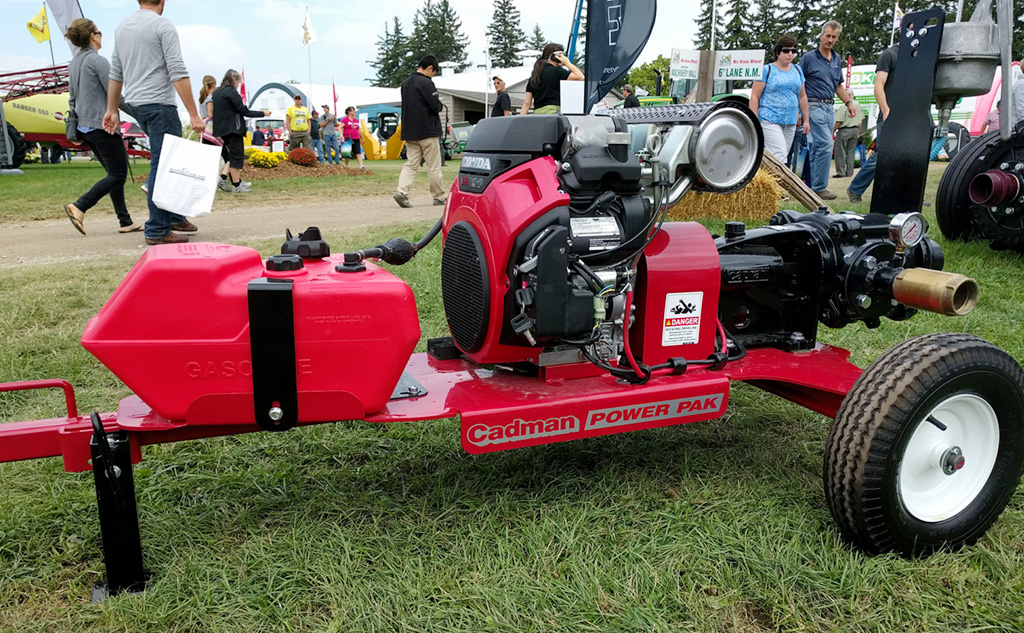

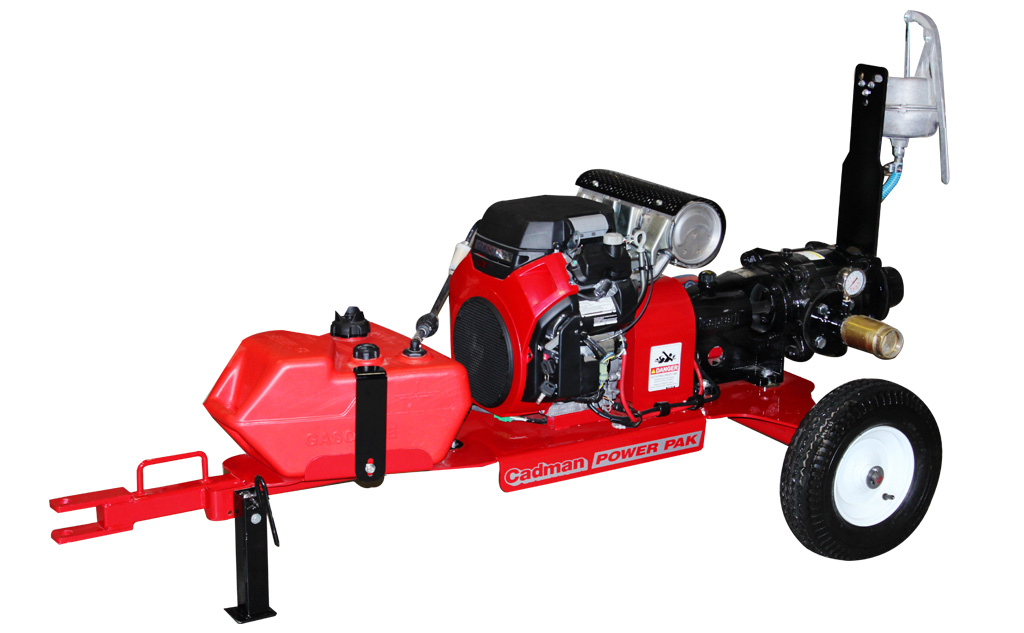

    Irrigation Power Unit Honda Pump-Set Packages | Kubota | John Deere | Top

    Features

  • 22hp V-Twin Honda Engine
  • Electric start
  • Positive lubrication
  • Caprari HMU 40-2/3 Multi-Stage pump
  • Other models available with approx. 165 psi and 180 gpm capabilities

  • DESCRIPTION
    Diesel engine option
