Irrigation Power Units
[ Kubota | John Deere ]

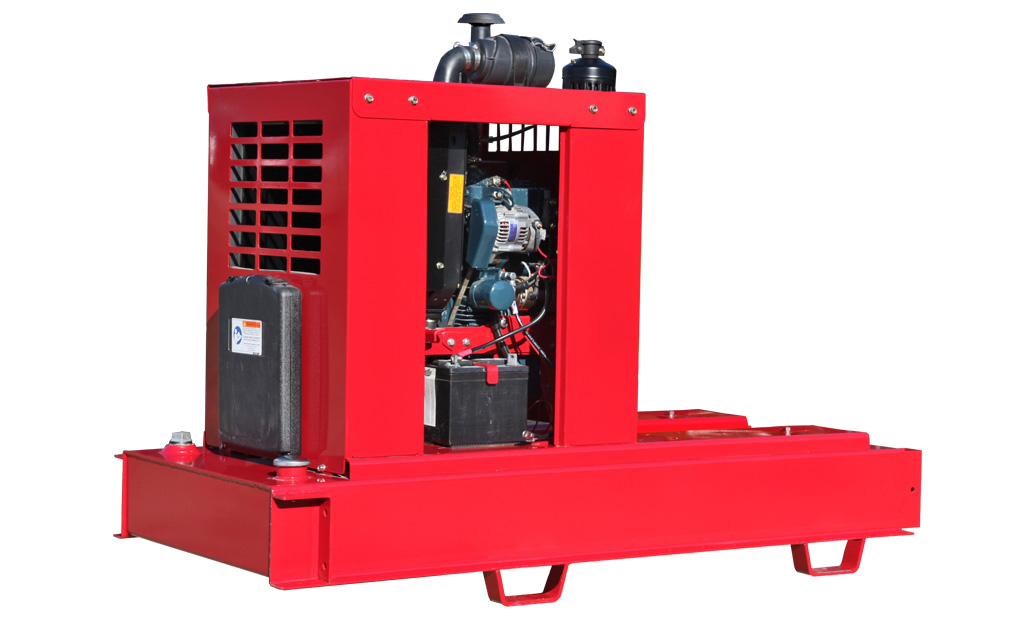

Kubota Power Units | John Deere | Top

Features

  • Radiator
  • Heavy Duty Air Cleaner
  • Muffler
  • Hood
  • 50 Gallon Fuel Tank
  • Fuel Level Gauge
  • Instrument Panel w/ Murphy Gauges*
  • Locking Panel Cover
  • Throttle Control
  • Battery Box & Hold Downs
  • Battery Cables

  • Standard Builds

  • 3/4 Enclosed power unit
  • Skid Base
  • Muffler
  • Oil level safety guage
  • Coolent level safety guage
  • Tongue & Axle with appropriate sized fuel tank
  • 12-Volt power primer
  • Model (hp) Part Number

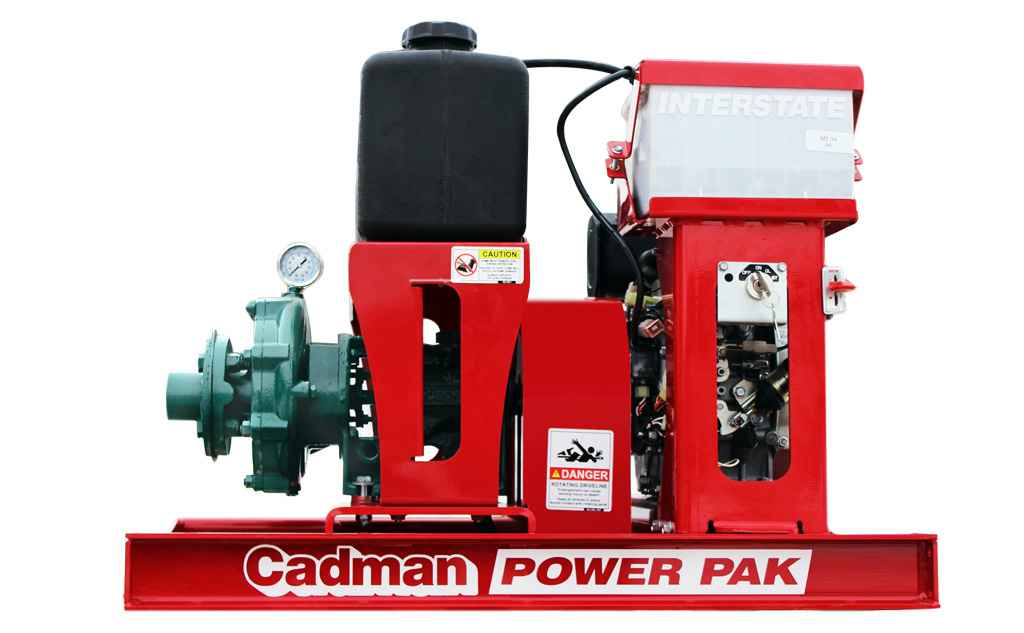

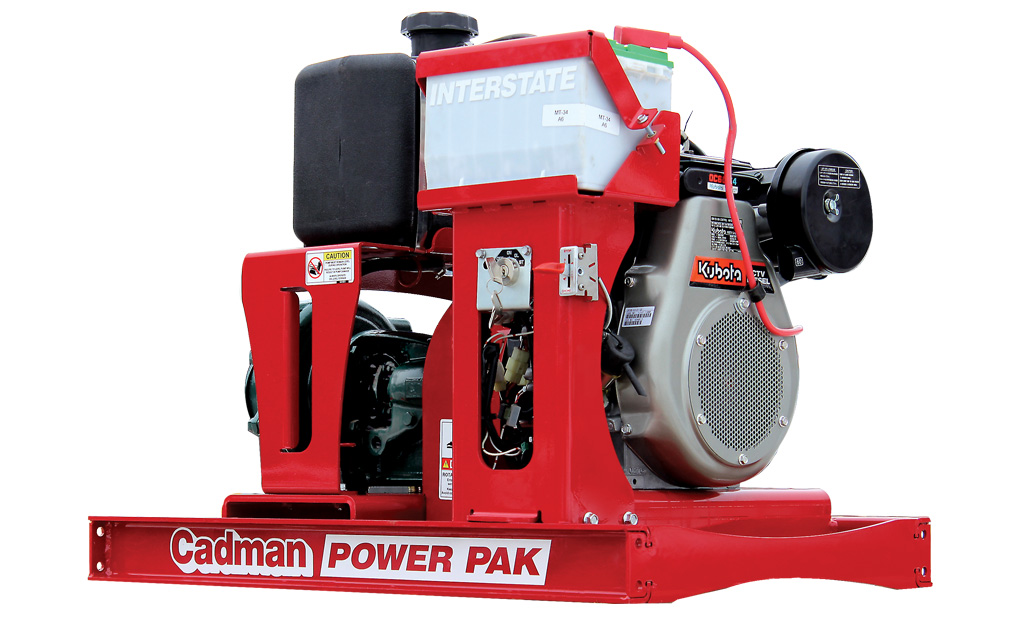

    6 hp
    14 hp KU-ASY-Z602-14PP
    21 hp KU-ASY-D902-21PP
    29 hp KU-ASY-D1305-29PP
    45 hp KU-ASY-V1505T-45PP
    66 hp KU-ASY-V3600-66PP
    DESCRIPTION
    Side Panels (Z602, D902, D1305)
    Side Panels (V1505T)
    Tongue & Axle Assembly
    Lifting Bail
    12 Hour Shutdown Clock
    24 Hour Shutdown Clock
    0-200 PSI High/Low Pressure Gauge
    L-129 Oil Level Safety Gauge
    EL150K1 Coolant Level Safety Gauge
    Battery

    POWERTECH® engines from John Deere bring a new level of technology to the engine market. Engineering advancement in all new POWERTECH® engines, along with electronic controls on the larger models, have enabled John Deere to provide a unique combination of performance and environmental compliance. POWERTECH® engines give you more than 30 power choices. They are packed with features and benefits that you can’t find in any other engine brand. With John Deere, you get more power, higher torque, better fuel efficiency, smooth operation, enhanced reliability, and application flexibility.

    Engine warranty on every John Deere engine is as follows:



    Step 1: Full coverage on all products with unlimited hours during the first year of operation.

    Step 2: Full coverage on all products is extended for the second year, up to 2,000 hours of operation. Total hours are cumulative from the time the engine goes into service.

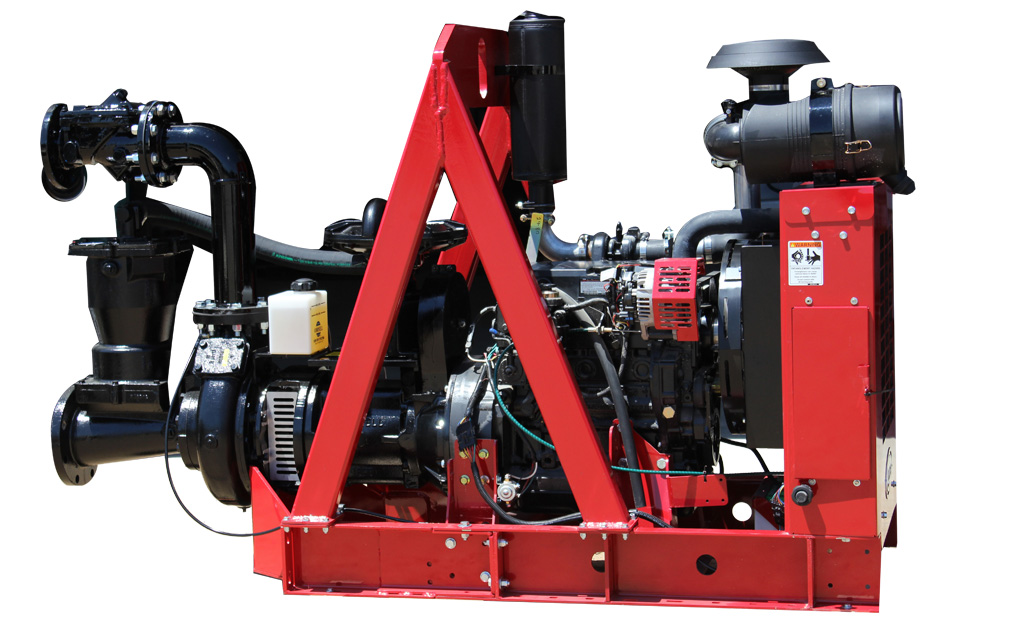

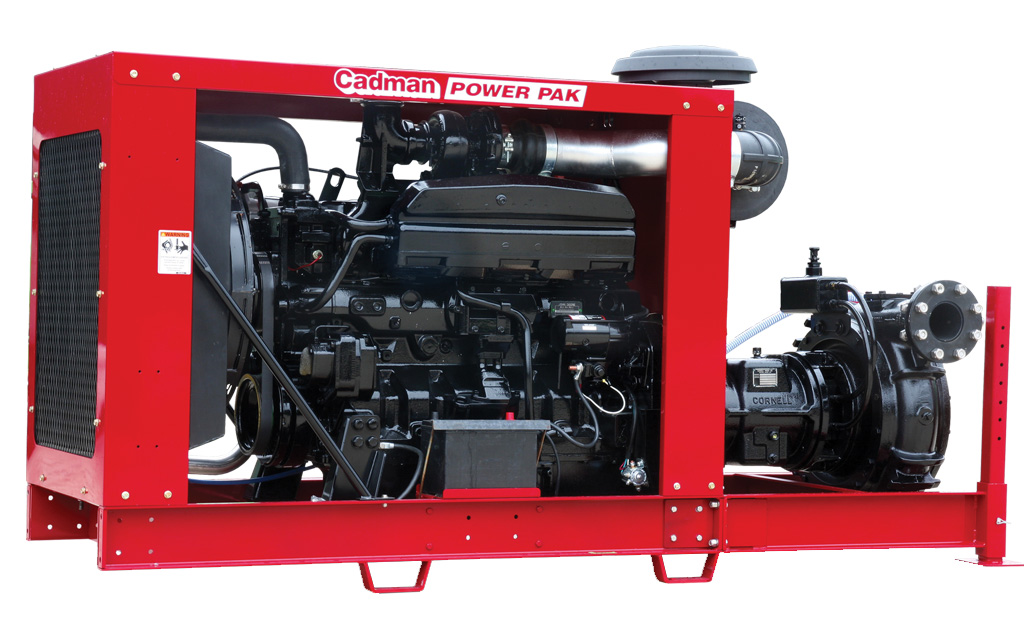

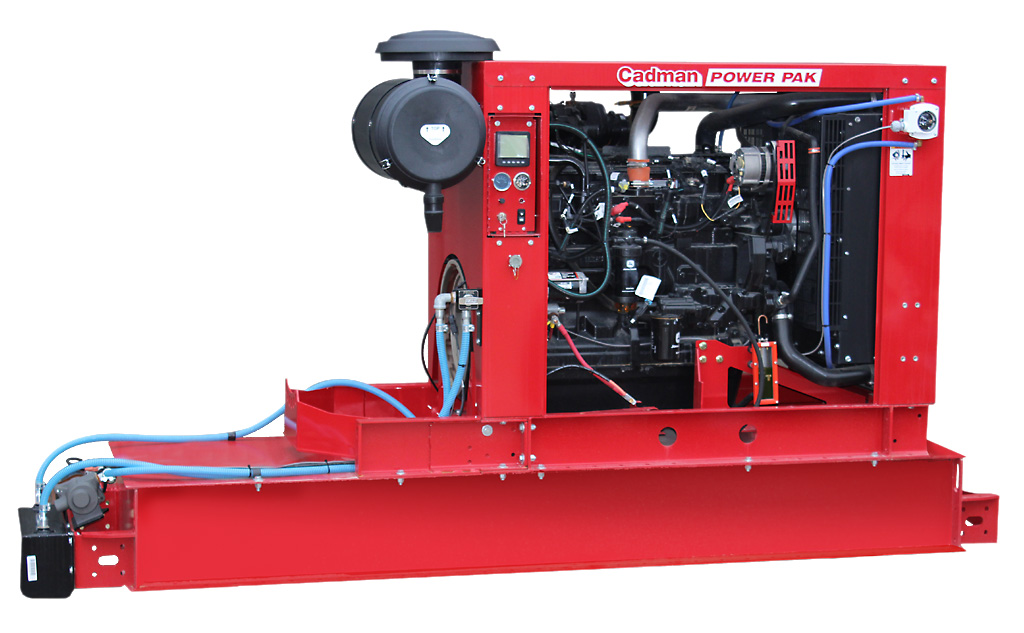

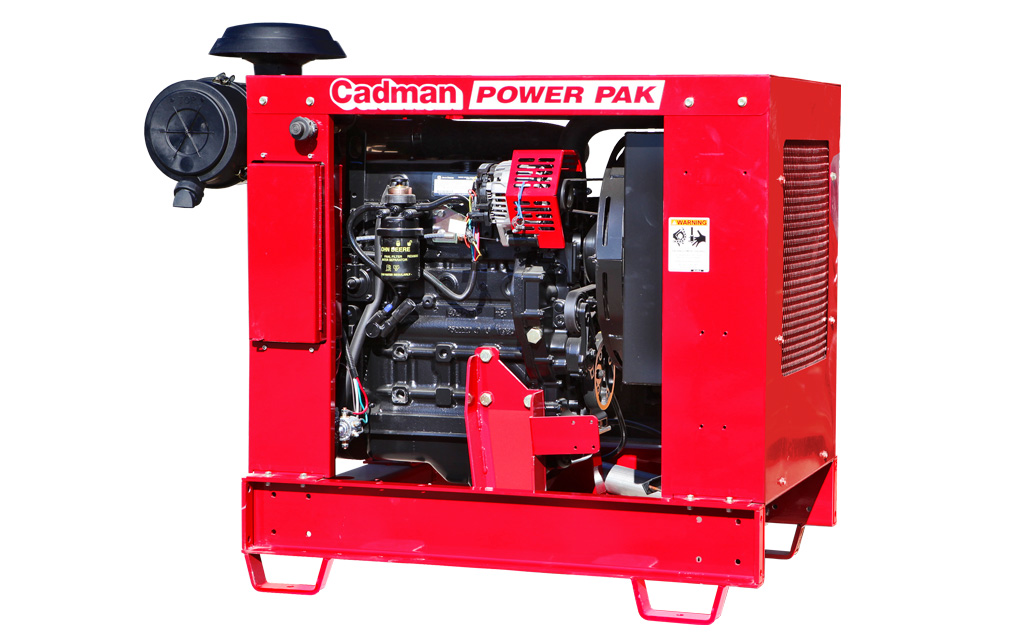

    John Deere Power Units | Kubota | Top

    Features

  • Front Grill/Rad Support
  • Variable pitch fan - 140°F
  • Back Panel/Rear Hood Support
  • Instrument Panel w/ Murphy Gauges
  • Locking Panel Cover
  • Throttle Control
  • Battery Box & Hold Downs
  • Battery Cables
  • Skid Base
  • Radiator
  • Heavy Duty Air Cleaner
  • Safety Element (Air Cleaner)
  • Service Indicator (Air Cleaner)
  • Straight Stack Exhaust
  • Hood

  • Instrument panel includes tachometer/hourmeter, oil pressure gauge, water temperature, gauge, voltmeter, Murphy tattletale, & key switch.

    Standard Builds

  • 3/4 Enclosed power unit
  • Muffler
  • Oil level safety guage
  • Coolent level safety guage
  • Tongue & Axle with appropriate sized fuel tank
  • 12-Volt power primer
  • Model (hp) Part Number
    49 hp JD-ASY-4024T-49PP
    66 hp JD-ASY-4024T-66PP
    75 hp JD-ASY-5030T-75PP
    76 hp JD-ASY-5030H3T-76PP
    82 hp JD-ASY-5030H3T-82PP
    99 hp JD-ASY-4045H3-99PP
    80 hp JD-ASY-4045H3T-80PP
    82 hp JD-ASY-5030H3T-82PP
    84 hp JD-ASY-5030T-84PP
    99 hp JD-ASY-4045H3-99PP
    115 hp D-ASY-4045T-115PP
    125 hp D-ASY-4045H3-125PP
    140 hp D-ASY-4045H3-140PP
    155 hp JD-ASY-6068H3-155PP
    173 hp JD-ASY-6068H3-173PP
    185 hp JD-ASY-6068T-168PP
    200 hp JD-ASY-6068H3-200PP
    225 hp JD-ASY-6081A-225PP
    275 hp JD-ASY-6081A-275PP
    300 hp JD-ASY-6090H3-300PP
    325 hp JD-ASY-6090H3-325PP
    375 hp JD-ASY-6090H3-375PP-F
    450 hp JD-ASY-6135H3-450PP
    450 hp w/ aux drive JD-ASY-6135H3-450PPA
    600 hp JD-ASY-6135H3-600PP
    600 hp w/ aux drive JD-ASY-6135H3-600PPA
    DESCRIPTION
    Side Panels (For Fully Enclosed 4 Cylinder)
    Side Panels (For Fully Enclosed 6 Cylinder)
    Tongue & Axle Assembly
    Tongue & Axle Assembly w/ 100 Gallon Fuel Tank
    Tongue & Axle Assembly w/ 150 Gallon Fuel Tank
    Third Support Leg (avail. w/ axle kit only)
    100 Gallon Fuel Tanks w/o Tongue & Axle
    150 Gallon Fuel Tanks w/o Tongue & Axle
    Tandem Axle
    12 Hour Shutdown Clock
    24 Hour Shutdown Clock
    Generator Mount (includes belts & pulleys)
    0-200 PSI High/Low Pressure Gauge
    L-129 Oil Level Safety Gauge (4045)
    L-129 Oil Level Safety Gauge (6068)
    EL150K1 Coolant Level Safety Gauge
    Muffler (80 - 200)
    Muffler (225 - 275)
    Exhaust Silencer
    Battery (Standard Duty for 4045)
    Battery (Heavy Duty for 6068)

    NOTE: Continuous HP ratings are published ratings by John Deere. These ratings do not account for fan or alternator losses.
