Irrigation Equipment: Soft Hose

Soft Hose Irrigation

Benefits & Features of Quality Hose

Mandals Superior Quality Hose is Key in Cadman Fluid Transfer Product

Cadman has partnered with the premiere manufacturer of TPU and Nitrile rubber lay flat hoses to provide an outstanding product for the transfer of high volume water transfer efficiently, safely, and cost-effectively. Hose is the key component of any water transfer operation and as such it needs to be durable and resilient in conditions as different as the raging heat and blazing sun of the desert, to sub-zero temperatures of the depths of winter.


Mandal’s vulcanizes each of their hoses to increase durability and to give it superior mechanical properties and durability, leading to a much longer lasting hose than competitors’ brands who do not vulcanize. Hoses are ‘benched’ to provide a consistent diameter across the entire length of hose so that hose fittings will fit properly into hose ends, reducing the danger of leaks. This also makes fittings easier to install, repair and handle, saving you valuable time before and during a job.


The superior weave of Mandals’ hose prevents elongation and snaking of hose, meaning that hose stays where you put it, and is easier to retrieve after the job is done. Superior coverage of the weave during the extrusion process ensures the rubber or TPU hose won’t separate from the weave as it can in some cheaper brands and superior abrasion resistance means that the weave won’t be exposed leading to costly downtime.


Finally, UV inhibitors in the rubber mean that even under the most extreme UV environments won’t cause the hose to break down like it will in brands that don’t use inhibitors in their manufacturing - meaning you can get years of trouble - free use out of your hose.


Benefits

  • Save time, money, and reduce costly downtime with longer lasting, superior materials
  • Avoid damage due to harsh environments with hose that is abrasion and UV resistant
  • The hose is vulcanized to guarantee a consistent, compact hose wall for add protection
  • Avoid snaking of hose under pressure with a superior quality, high-tolerance weave
  • Be confident in the quality of your hose, and avoid concerns about maintaining your project with a 1-year manufacturer’s warranty against defects

  • Features

  • Superior vulcanized rubber or TPU
  • Consistent and accurate hose diameters
  • Tight, strong weave
  • Excellent UV, chemical and abrasion resistance
  • Extended warranty
  • Cadman Superman HVT is made from thermoplastic polyurethane (TPU) extruded through a circular woven jacket made from high tenacity filament polyester yarn.


    The hose is intended for transfer of large volumes of liquid at higher than normal working pressures while at the same time being lightweight and easy to deploy.

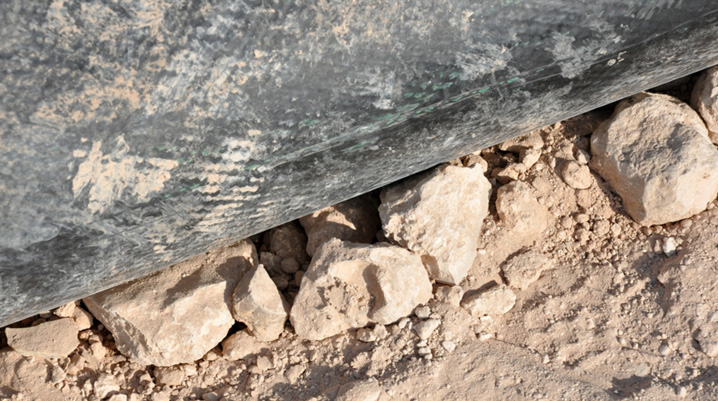

    The excellent abrasion resistance prevents the hose from being damaged when deployed in rugged terrain where other types of outer cover would be worn off quickly due to the pulsations of the flow combined with the weight of the filled hose.


    The heavily reinforced weave ensures minimum extension in length and minimum “snaking” of deployed hose.

    Mandals Superman HVT can operate in an ambient temperature range from -50°C to +75°C, and can withstand intermittent use up to +80°C.

    Standard lengths up to 200 meters.



    SIZE WORKING PRESSURE BURST PRESSURE WEIGHT
      2 : 1 3 : 1
    8" 300 PSI 200 PSI 600 PSI 1380 # per 660'
    10" 254 PSI 169 PSI 507 PSI 1821 # per 660'
    12" 218 PSI 145 PSI 435 PSI 2198 # per 660'
    SIZE WORKING PRESSURE BURST PRESSURE WEIGHT
      2 : 1 3 : 1
    4" 276 PSI 184 PSI 552 PSI 588 # per 660'
    4.5" 255 PSI 170 PSI 510 PSI 670 # per 660'
    5" 236 PSI 155 PSI 465 PSI 720 # per 660'
    5.5" 236 PSI 155 PSI 465 PSI 780 # per 660'
    6" 236 PSI 155 PSI 465 PSI 838 # per 660'
    SIZE WORKING PRESSURE BURST PRESSURE WEIGHT
      2 : 1 3 : 1
    2" 325 PSI 217 PSI 650 PSI 165 # per 660'
    3" 290 PSI 194 PSI 580 PSI 310 # per 660'
    4" 250 PSI 167 PSI 500 PSI 462 # per 660'
    6" 263 PSI 175 PSI 525 PSI 752 # per 660'
    SIZE WORKING PRESSURE BURST PRESSURE WEIGHT
      2 : 1 3 : 1
    2" 508 PSI 338 PSI 1015 PSI 224 # per 660'
    3" 350 PSI 233 PSI 700 PSI 330 # per 660'
    4" 263 PSI 175 PSI 525 PSI 488 # per 660'
    5" 218 PSI 145 PSI 435 PSI 653 # per 660'
    6" 230 PSI 153 PSI 460 PSI 732 # per 660'
    8" 189 PSI 126 PSI 377 PSI 977 # per 660'
    10" 153 PSI 101 PSI 305 PSI 1261 # per 660'
    12" 110 PSI 73 PSI 220 PSI 1551 # per 660'
    SIZE WORKING PRESSURE BURST PRESSURE WEIGHT
      2 : 1 3 : 1
    1" 363 PSI 243 PSI 725 PSI 73 # per 660'
    1-1/2" 325 PSI 217 PSI 650 PSI 125 # per 660'
    2" 325 PSI 217 PSI 650 PSI 165 # per 660'
    3" 300 PSI 200 PSI 600 PSI 310 # per 660'
    4" 260 PSI 173 PSI 520 PSI 462 # per 660'
    6" 230 PSI 153 PSI 460 PSI 733 # per 660'
    8" 190 PSI 127 PSI 380 PSI 977 # per 660'
    10" 145 PSI 97 PSI 290 PSI 1261 # per 660'
    12" 110 PSI 73 PSI 220 PSI 1551 # per 660'
    SIZE WORKING PRESSURE BURST PRESSURE WEIGHT
      2 : 1 3 : 1
    2" 1088 PSI 725 PSI 2175 PSI 48 # per 100'
