Irrigation Pumps: Cornell

Cornell has built its reputation on producing high quality, efficient, heavy-duty centrifugal pumps to meet the toughest applications. Cornell's Clear Liquid pumps reach up to 89% hydraulic efficiency.


Caprari Pumps


W Series

  • Low Cost, High Efficiency, 3600 rpm pumps
  • 1" through 5" discharge size
  • Flows to 2500 GPM and Heads to 220 feet

  • Y Series
  • Wide Range of Flow and Head
  • 1.25" through 10" discharge size
  • Flows to 6600 GPM and Heads to 400 feet

  • RB Series
  • The Most Efficient Pumps in the Industry
  • 2.5" through 10" discharge size
  • Flows to 7000 GPM and Heads to 325 feet

  • H Series
  • High Head, High Efficiency pump
  • 3" through 8" discharge size
  • Flows to 5500 GPM and Heads to 440 feet

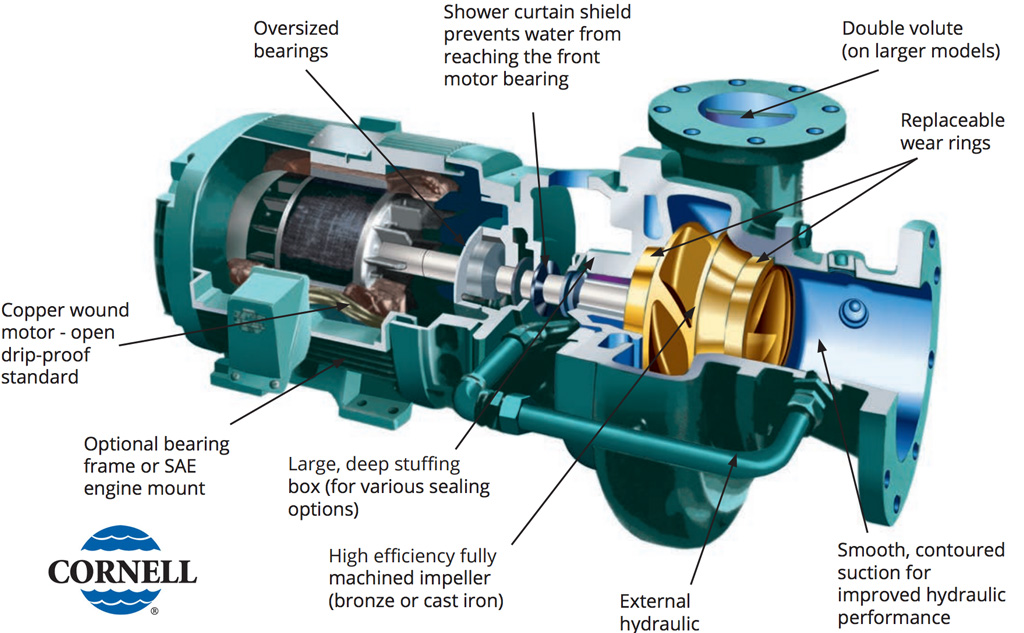

  • DOUBLE VOLUTE
    Cornell introduced the double volute as an industry first more than 30 years ago. The double volute system effectively balances forces within the pump to reduce radial load, shaft deflection and fatigue. This eliminates shaft breakage and extends the service life of packing and mechanical seals, wear rings and bearings while maintaining high hydraulic efficiency.


    EXTERNAL HYDRAULIC BALANCE LINE
    Cornell’s external hydraulic balance line equalizes pressure between the impeller hub area and the pump suction to reduce axial loading acting on the impeller, shaft and bearings. The balance line also assists in moving sand and silt from the stuffing box to the low pressure area at the pump suction, reducing wear of the wetted parts.


    ENERGY EFFICIENCY
    Cornell Pumps are designed to deliver best in class efficiency. Depending on operating hours, fuelant, and horsepower required, you can save $3,000 per year (or more) in energy costs. Cornell manufactures more than 35 IRRIGATION pump models that meet or exceed optimum efficiency standards for centrifugal pumps.


    MATERIALS OF CONSTRUCTION
    All Cornell irrigation pumps are constructed with top quality materials. Cornell irrigation pumps are cast iron, bronze fitted or all iron construction. Optional materials are available for abrasive or caustic applications. Standard features include balanced impellers, heavy-duty shafts, replaceable shaft sleeves, and replaceable wear rings.


    MODEL DIMENSIONS DISCHARGE FLOW / RANGE CURVE PHOTOS
    Engine Mounted Pump Dimensions 2.5 - 10" Flows to 5500 GPM Cornell H-Series Pump
    Cornell H-Series Engine Mount Pump
    Horizontal Close Coupled

    Pump Dimensions

    1.25 - 10" Flows to 6600 GPM Cornell H-Series Pump
    Cornell Y-Series Engine Mount Pump
    Horizontal Frame Mount

    Pump Dimensions

    2.5 - 8" Flows to 5500 GPM Cornell H-Series Pump
    Cornell H-Series Horizontal Frame Mount Pump
    Vertical Close Coupled

    Pump Dimensions

    2.5 - 8" Flows to 4900 GPM Cornell H-Series Pump
    Cornell H-Series Vertical Close Coupled
    MODEL DIMENSIONS DISCHARGE FLOW / RANGE CURVE PHOTOS
    Engine Mounted Pump Dimensions 2.5 - 10" Flows to 7100 GPM Cornell R-Series Pump
    Cornell R-Series Engine Mount Pump
    Horizontal Close Coupled

    Pump Dimensions

    1.25 - 10" Flows to 5700 GPM Cornell R-Series Pump
    Cornell R-Series Engine Mount Pump
    Horizontal Frame Mount

    Pump Dimensions

    2.5 - 10" Flows to 7100 GPM Cornell R-Series Pump
    Cornell R-Series Horizontal Frame Mount Pump
    Vertical Close Coupled

    Pump Dimensions

    2.5 - 10" Flows to 5700 GPM Cornell R-Series Pump
    Cornell R-Series Vertical Close Coupled
    MODEL DIMENSIONS DISCHARGE FLOW / RANGE CURVE PHOTOS
    Engine Mounted Pump Dimensions 4 - 5" Flows to 2550 GPM Cornell W-Series Pump
    Cornell W-Series Engine Mount Pump
    Horizontal Close Coupled

    Pump Dimensions

    1 - 5" Flows to 2550 GPM Cornell W-Series Pump
    Cornell W-Series Engine Mount Pump
    Horizontal Frame Mount

    Pump Dimensions

    1 - 5" Flows to 1900 GPM Cornell W-Series Pump
    Cornell W-Series Horizontal Frame Mount Pump
    Vertical Close Coupled

    Pump Dimensions

    1 - 5" Flows to1900 GPM Cornell W-Series Pump
    Cornell W-Series Vertical Close Coupled
    MODEL DIMENSIONS DISCHARGE FLOW / RANGE CURVE PHOTOS
    Engine Mounted Pump Dimensions 3 - 10" Flows to 6750 GPM Cornell Y-Series Engine Mounted Pump
    Cornell Y-Series Engine Mount Pump
    Horizontal Close Coupled

    Pump Dimensions

    1.25 - 10" Flows to 5400 GPM Cornell Y-Series Engine Mounted Pump
    Cornell Y-Series Engine Mount Pump
    Horizontal Frame Mount

    Pump Dimensions

    1.25 - 10" Flows to 5400 GPM Cornell Y-Series Engine Mounted Pump
    Cornell H-Series Horizontal Frame Mount Pump
    Vertical Close Coupled

    Pump Dimensions

    1.25 - 10" Flows to 5400 GPM Cornell Y-Series Engine Mounted Pump
    Cornell H-Series Vertical Close Coupled
